Be interested in what model it is though... Asus maybe ?
The youtube video I was using for reference said "make sure the cassette door is open when you begin" - well that's no good, as it's one of the things that doesn't work ... so I took the front panel off to get the transport out, disconnected the various leads to remove it:
I don't have pics, but both belts had turned to goo, which I removed with a plastic scraper & isopropyl alcohol. The capstan drive on its own would've been easy, but the belt for the open/close mechanism took quite a bit of disassembly to get at ... Youtube is so helpful with this sort of thing, a video being worth a thousand words as they say ... I'd already bought belts & a new pinch roller, so those were fitted and the transport was put back into the deck
When everything was back together it actually worked! Surprised that the door mechanism did, as I did a lot of stretching & straining it to get at the necessary screws - I thought I might've damaged it:
Really satisfying to have got it all working again
Sorry about the lack of pics, it all got a bit involved! I'll try & take more next time
please tell me where to get the bits
How much skill does it take to fix it?
Pinch roller came from Hi-Fi Retro Parts in Slovakia for £4
If you search for "PW restoration" channel on Youtube he has some very good videos about how to do a belt change - that way you can judge for yourself if you're up to the task ...
Excellent work there, well done
These old things do require a bit of maintenance.
(How come something from the 1990s is old ... How did that happen? Seems like only yesterday ...)
https://i.imgur.com/zdSA9kt.jpeg
The laser diode has its terminals shorted together for antistatic protection, so you have to desolder a link between two pads before it will work. You can see the solder bridge here in the top right corner of the pcb, next to the ribbon connector socket.
https://i.imgur.com/8MzjbLT.jpeg
I plugged it in and it appeared to work, although spinning a CD was very noisy and there was distortion which disappeared when I pressed certain parts of the plastic housing. I reckoned something must have been misaligned, possibly causing some friction somewhere. So I disassembled it again! This time it worked, spinning silently and with no distortion - success!
However, despite using the sorting tray of my iFixit toolkit to be organised and methodical, I ended up, inexplicably, with this:
https://i.imgur.com/ZfWWtaj.jpeg
Was there any alignment of the new laser head needed?
The head assembly that cost £17 (+ postage) is the metal plate that has the rails, the diode assembly, and two electric motors (one to spin the disk and the other to track the head along the rail). It mounts onto the plastic tray mechanism with 4 screws and rubber grommets at each corner.
Could you let me know the details of the supplier of your laser please. I have a Naim CDS, a very expensive CD player in it's day and I've spent a lot of time trying to find a laser unit, without success. Unfortunately it is gathering dust, just for the want of a laser assembly.
Googling for replacement parts now seems to give a lot more useful results now than when I initially looked about 3-4 years ago.

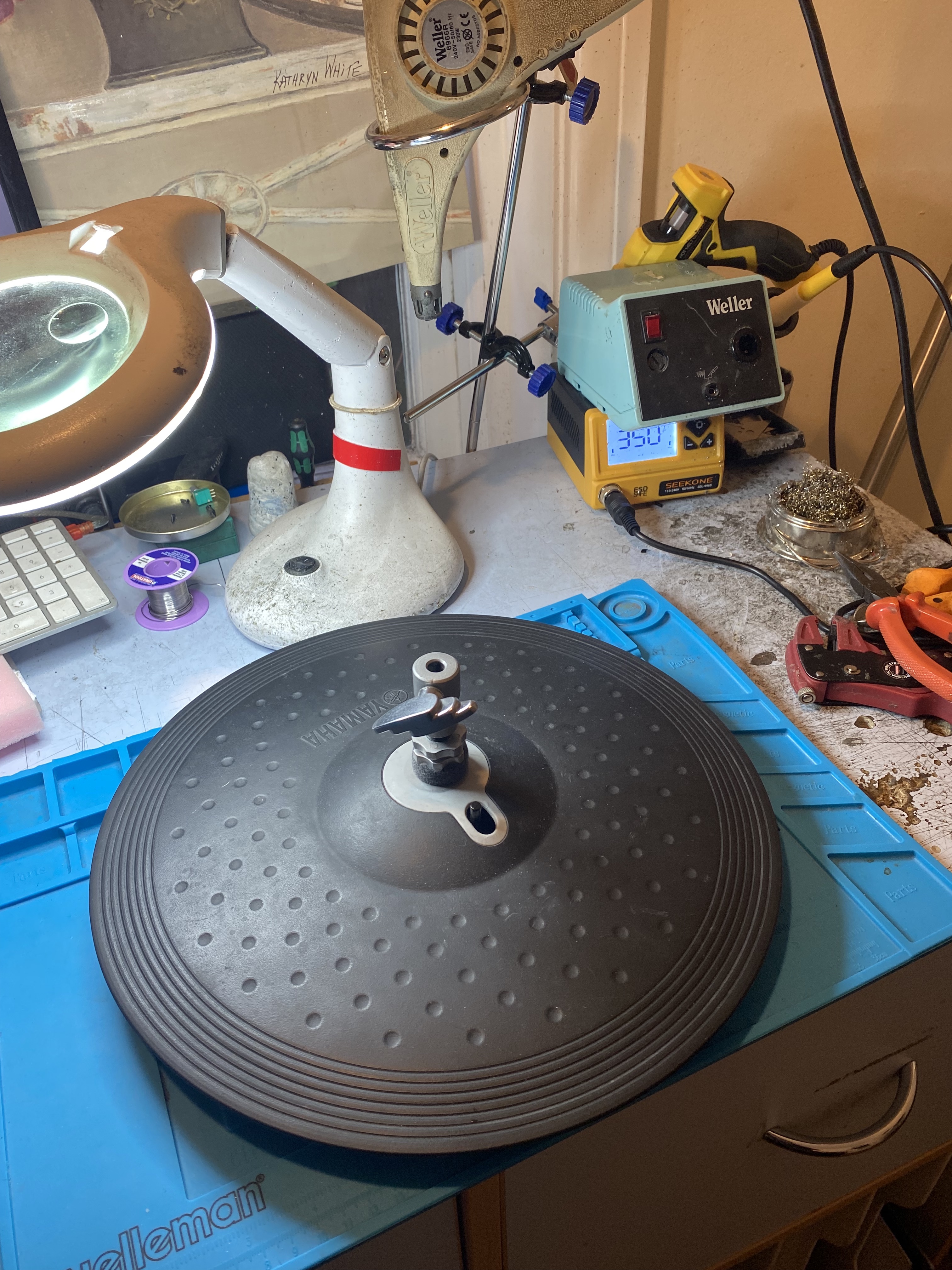

Here's a quick repair, a Yamaha E kit Hi-hat. I've done a couple of these for a school. They fail due to a design flaw but there's an easy solution for a fix if the kits in a static position all the time, like it is at the school.
The fault is the trigger signal if intermittent or not there at all and here's what fails

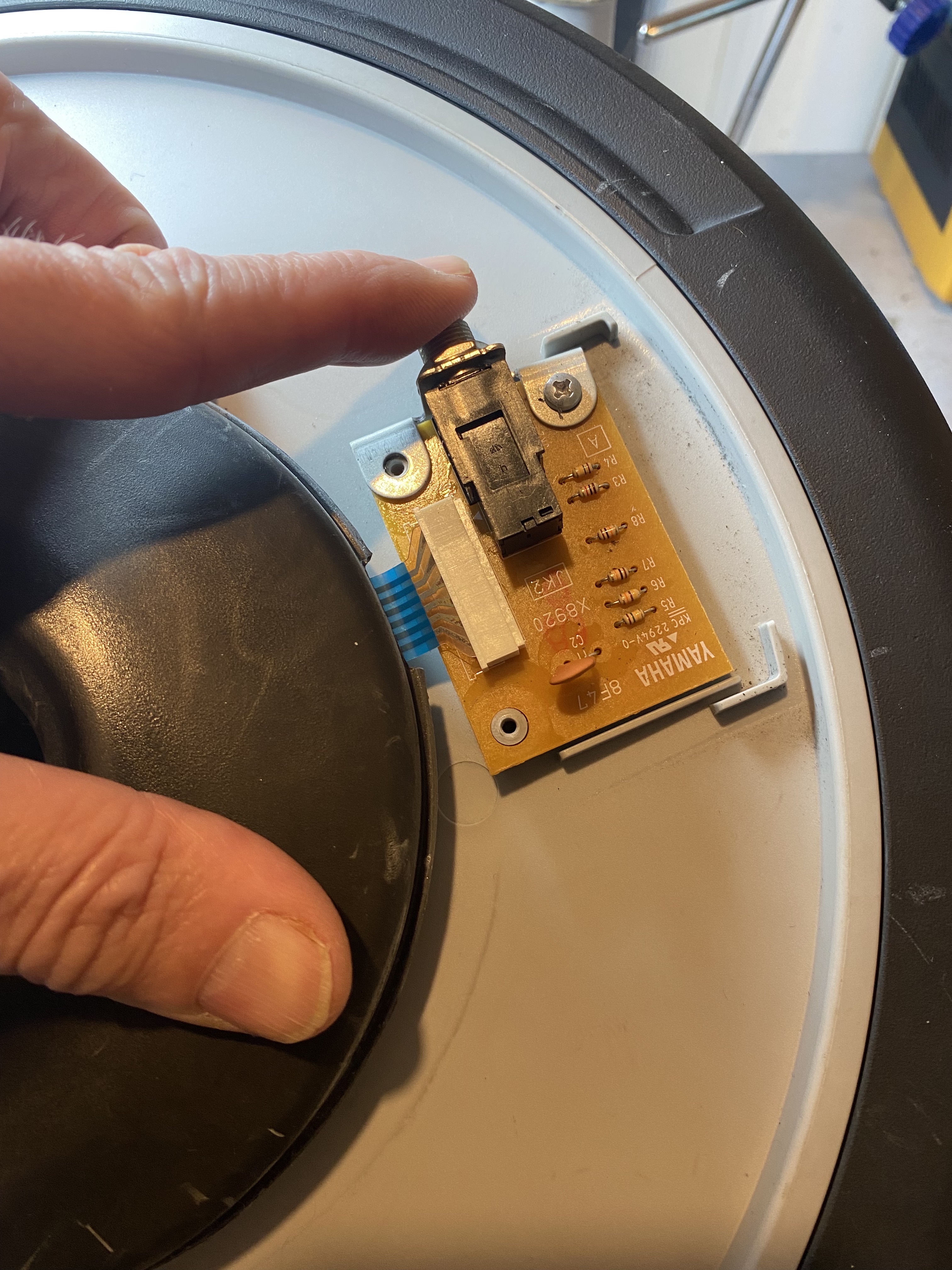

With the rubber removed you can see the stereo jack used for the output has come loose on the PCB because A: Japanese manufacturers use the cheapest sockets they can source and B, the metal bracket than is meant to secure it has fractured due to the constant vibration.
So I could weld the bracket and solder the same socket or a nre one on again but what's the point. It will only fail again because you can't make a solid joint against a vibrating surface. Ironically a plastic bracket would have stood up better than a metal bracket in this application, So here's how I fix them. Lose the socket, push a piece of mic cable through the holes. Push the wires through the PCB and solder underneath, Then use a cable tie as a primitive but effective solutuion to stop the cable being pulled, cover with hot glue and fit a female 1\4 stereo socket on the end. Check the joints and bracket on the other side and beef up with hot glue before it gets a chance to break.
So it's got a 1M trailing lead on it which is enough length so the next cable can plug into it on the ground. Drum teacher who gives me those work says it's reliable and doesn't go wrong again.

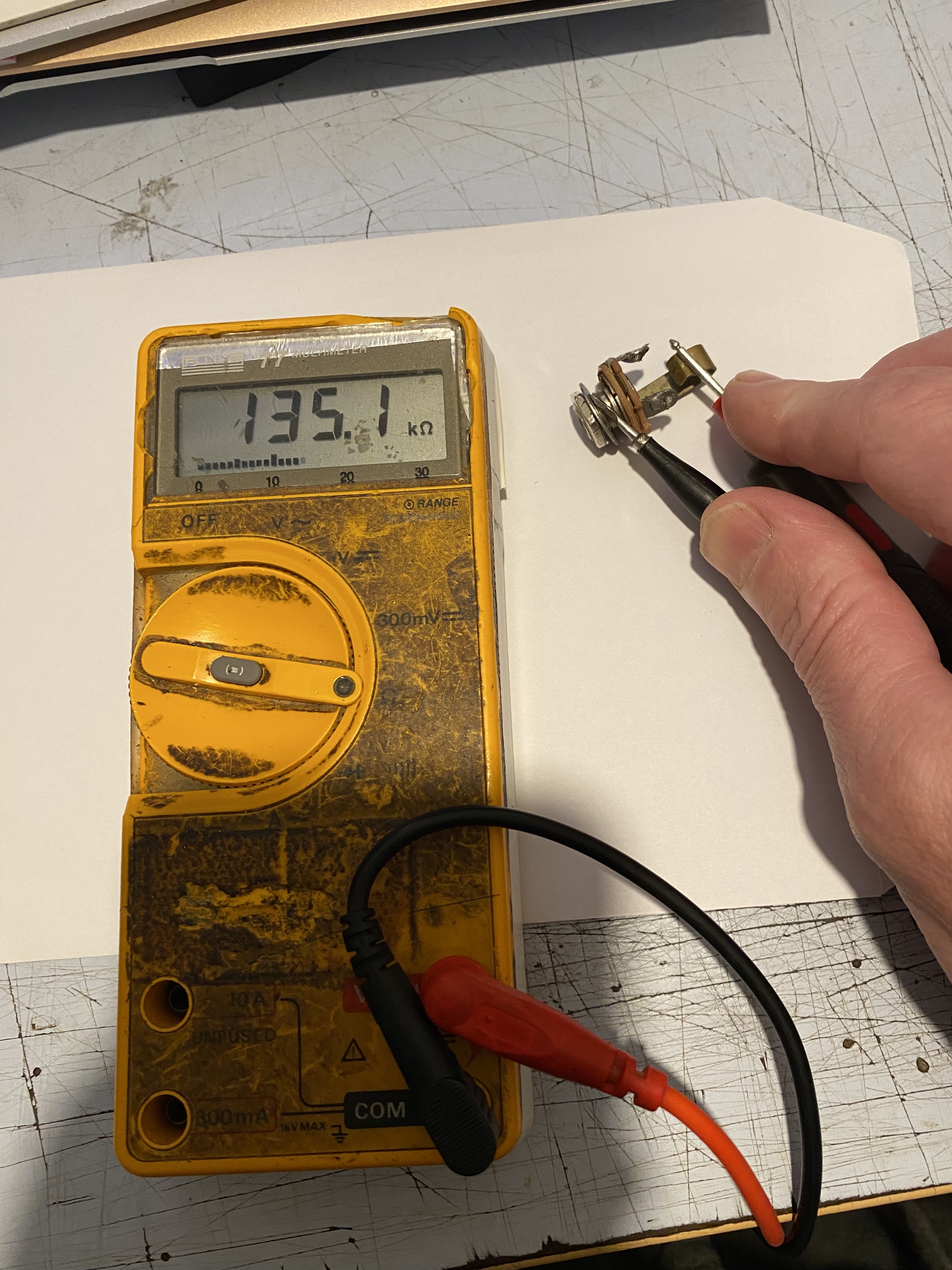

Oh here's one thing that caused a head scratcher a couple of months ago. Customer brings in a bass for a new volume pot. I change the pot and also resolder the jack socket as whoever soldered it before had done a terrible job. I give the bass back and customer reports a loss of treble. I get the bass back and yeah there is a loss and at a path to ground somewhere but I can't see where. Then I decide out of interest to measure the output jack and look at this
What had happened was over the many years beer and sweat had got between the laminate layers of the jack but for the most part weren't hurting anything. I guess when I heated the socket to resolder it this vile liquid flowed and created a primitive 130K ish resistor in the socket across signal and ground which loaded the pickup and sucked the top end off.
I don't get involved in guitar electronics unless it's active pre amps and stuff so first time I have seen that
